BEDSH-YS-M20 Series Specifications

BEDSH-YS-M20

Specifications:
Standard Device Trimming device
Option Device Cording device / Boring device
Stitch Length (mm) 0.1-12.7
Power Supply (v) [1P] AC100-240V /
[3P] AC200-415V
Motor Capacity (kW) 0.75
Power Consumption (kW) 1.5
Power (kVA) 2.5



BEDSH-YS-M20 Series Machine Information - Dimensions
Model Needle
Spacing		 Sewing
Field		 Continuous
Design		 No. of
Needles		 No. of
Heads		 Weight L W H
BEDSH-YS-M20 9.4" 12.6"x9.4"/9.4" 12.6"x189.0" 7 20 -- lbs. 226.4" 41.1" 62.4"
(Metric in mm) 240 320x240/240 320x4800     -- kg. 5750 1043.5 1586

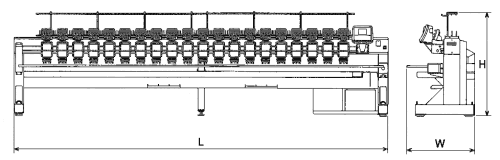

BEDSH-YS-M20 Embroidery Machine Dimensions

Note 1: The embroidery area indicated above allows for maximum pantograph movement.
The actual embroidery field size may be restricted by the frame used.
Note 2 The sewing speed range is indicated above.
Actual sewing speed should be adjusted for your embroidery application,
i.e., stitch length, fabric used, etc.
Note 3: Other Embroidery Area available upon consultation.



All specifications subject to change without notice.
