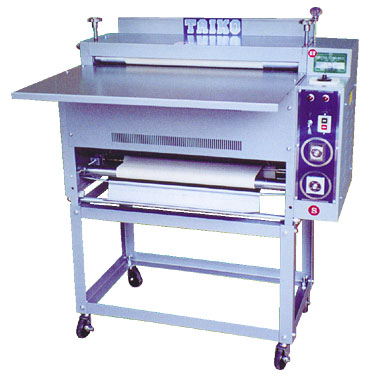

YMP-1900 S

"TAIKO" Rotary Press
For all kinds of Fusing & Creasing


With Pocket Folder
With Side Sleeve Folder


Features
  • Multipurpose Machine (All kinds of Fusing & Creasing)
  • Compact Size (Installation at Narrow Space)
  • High Pressure (Top Fuse O.K.)
  • Long Life Belt (High Quality Silicon Belt)
  • Automatic Belt Levelling (Always Keeping Correct Position)


Specifications
  Working Width : 450mm
  Electric Capacity : 200V - 380V / 2.7KW - 3KW
  Temperature : 0oC - 300oC
  Standard Pressure : 1.2Kg / cm2
  Working Speed : 0 - 8m / minute
  Dimension : 860mm x 540mm x 565mm
  Weight

: 65 kgs




All specifications subject to change without notice.
